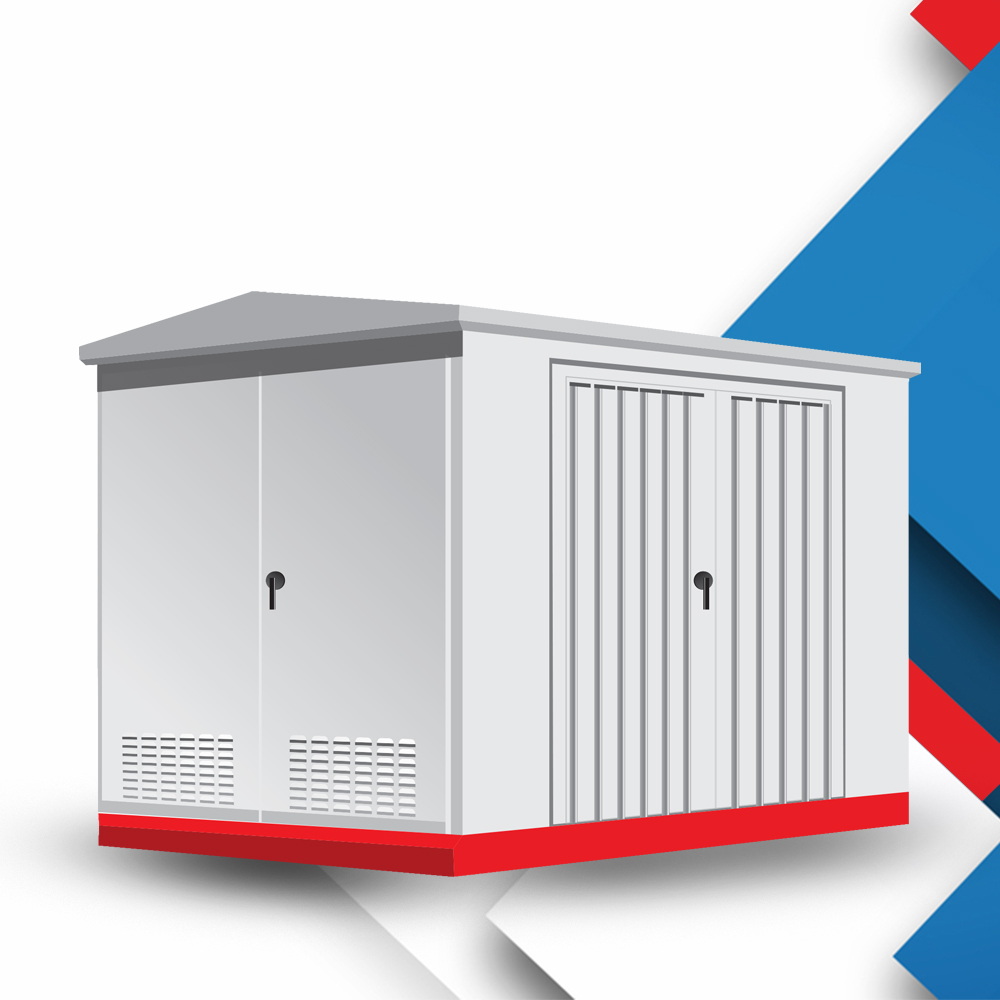

Compact Sub Station
Compact Sub Station
Compartmentalization :
- HT Breaker Chamber
- Transformer Chamber
- LT Distribution Board Chamber
Introduction :
- Installation where space is premium like Complexes, Airports,Malls,Industries etc
- Designed to with stand surrounding temperature, humidity & condensation, rain, solarradiation.
- Designed keeping in mind the Dielectric & Thermal isolation.
- Indigenously designed & tested forfast & easy installations.
- High life expectancy under normal operating conditions.
- Maintenance free.
Design & Structure :
Every unit is factory tested and contains the following:
- CRCA/GI metal enclosure with compartments.
- 11kV/12kV/VCB for connection to the 11kV/12kV network and also the protection circuits for the(HV/LV) transformers.
- Hermitically sealed transformer.
- Hermitically sealed transformer.
- LV switch board with required rating.
- HV/LV Terminals.
- HV/LV Terminals.
- Appropriate Ventilations.
- Appropriate Ventilations.
- 4 point locking doors
- 4 point locking doors
- Walkway (optional)
- Insulated Busbars.

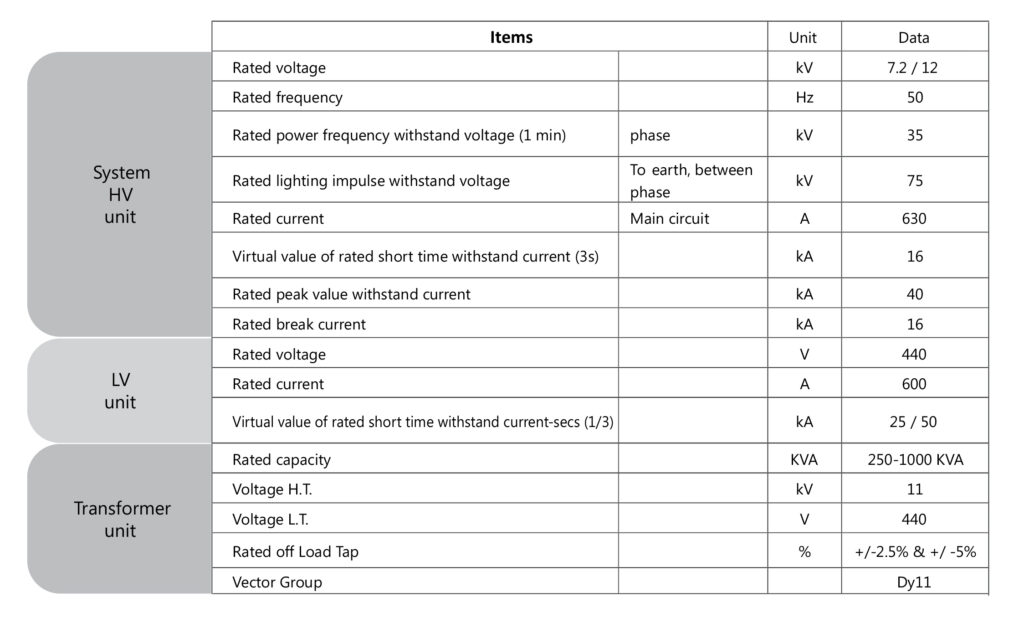

Customized Design :
Our Compact Substation can be designed and customized to different sizes and configurations to fulfill the customers requirements.
| Input Voltage: | Single Phase 230 or 240Volts |
| Output Voltage: | Single Phase 0-270V |
| Input Voltage: | Three Phase 400 or 415Volts |
| Output Voltage: | Three Phase 0-470V |
